4 bit CPU ~ from scratch
This document contains the design and implementation of a simple 4-bit CPU built entirely using transistors within a simulator environment. The goal of this project is to understand and recreate the fundamental building blocks of a CPU — including logic gates, arithmetic units, memory, and control logic from the ground up. A 4-bit architecture was chosen to keep the design manageable and easy to debug, while still demonstrating all key concepts such as data flow, instruction execution, and program control. Despite its limited size, a 4-bit CPU is powerful enough to perform arithmetic operations, store data, and run simple programs. This document outlines each component, the thought process behind its construction, and how everything fits together to form a working CPU.
logs can be found here
Table of Content
Transistors
PMOS and NMOS
PMOS and NMOS are two basic types of transistors used to build digital circuits.

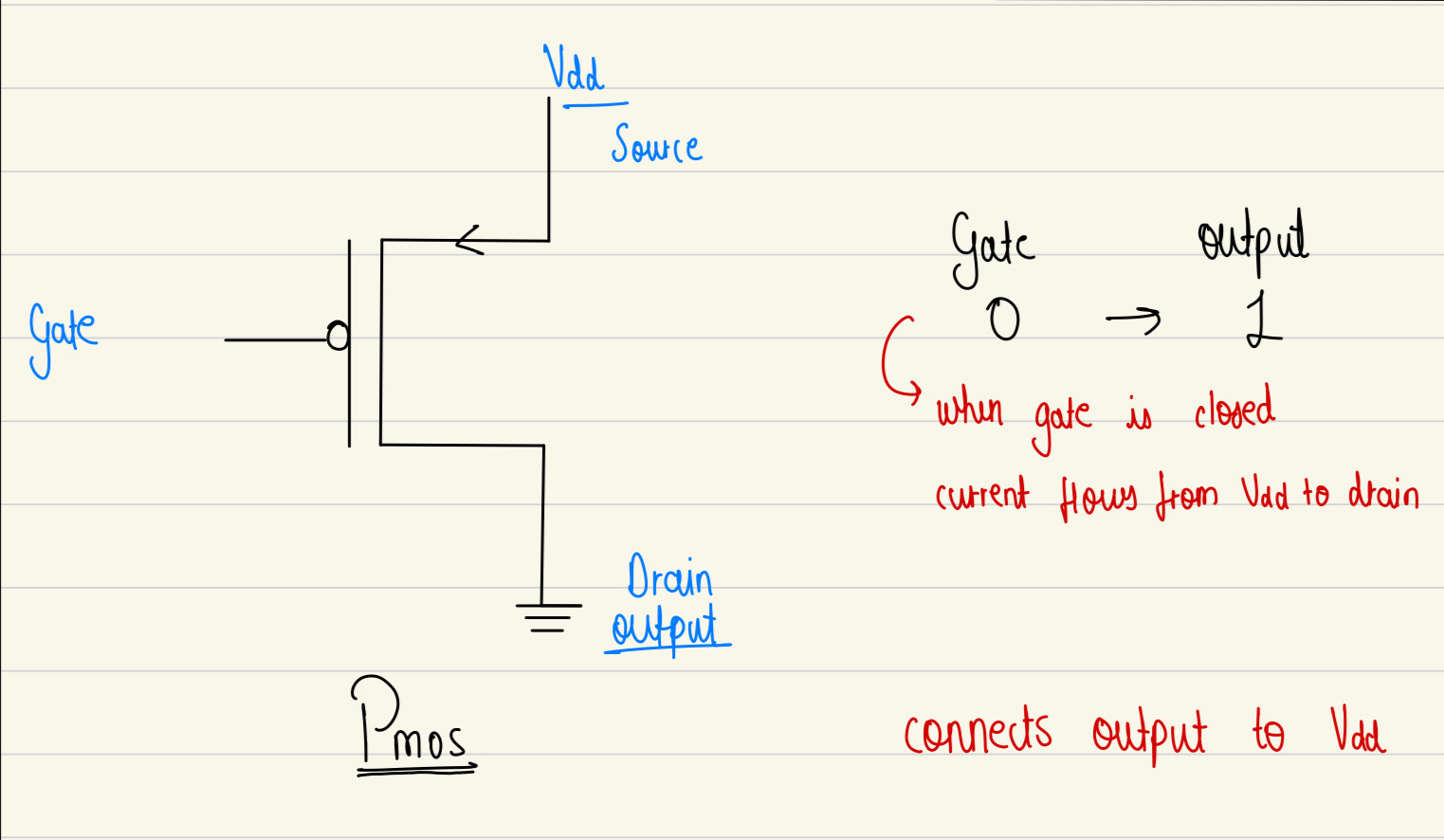

PMOS - p-type MOSFET
PMOS turns ON with 0 because it needs a low signal to let current flow
PMOS uses holes as carriers → needs negative gate (lower voltage) to attract them.

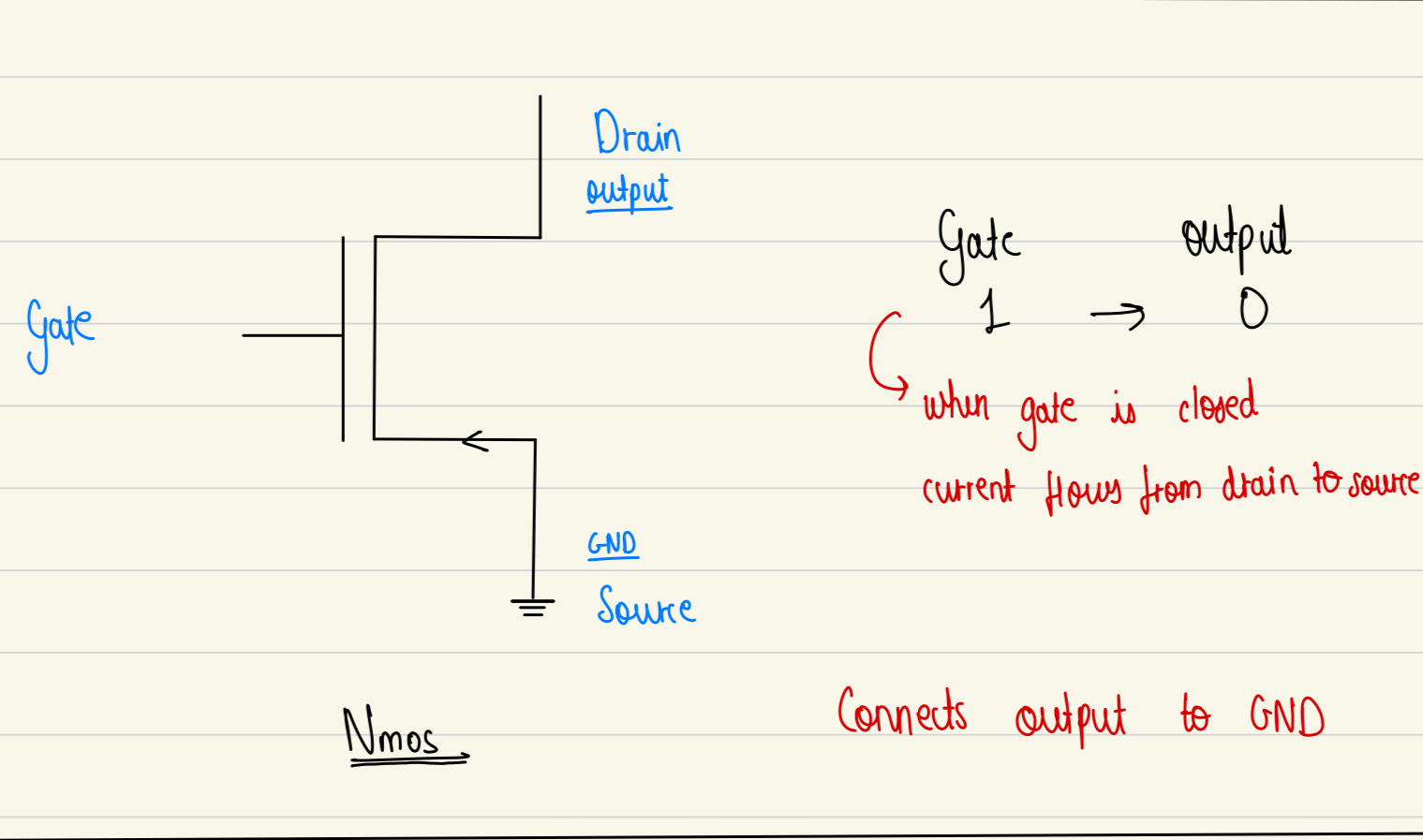

NMOS - n-type MOSFET
NMOS turns ON with 1 because it needs a high signal to let current flow
NMOS uses electrons as carriers → needs positive gate to attract them.
Every transistor have 3 main parts:
-
Emitter
Send out charge carriers (eg: electrons) -
Base
Middle Layer that controls the transistor -
Collector
Collects the charge carrier from the emitter
Logic Gates

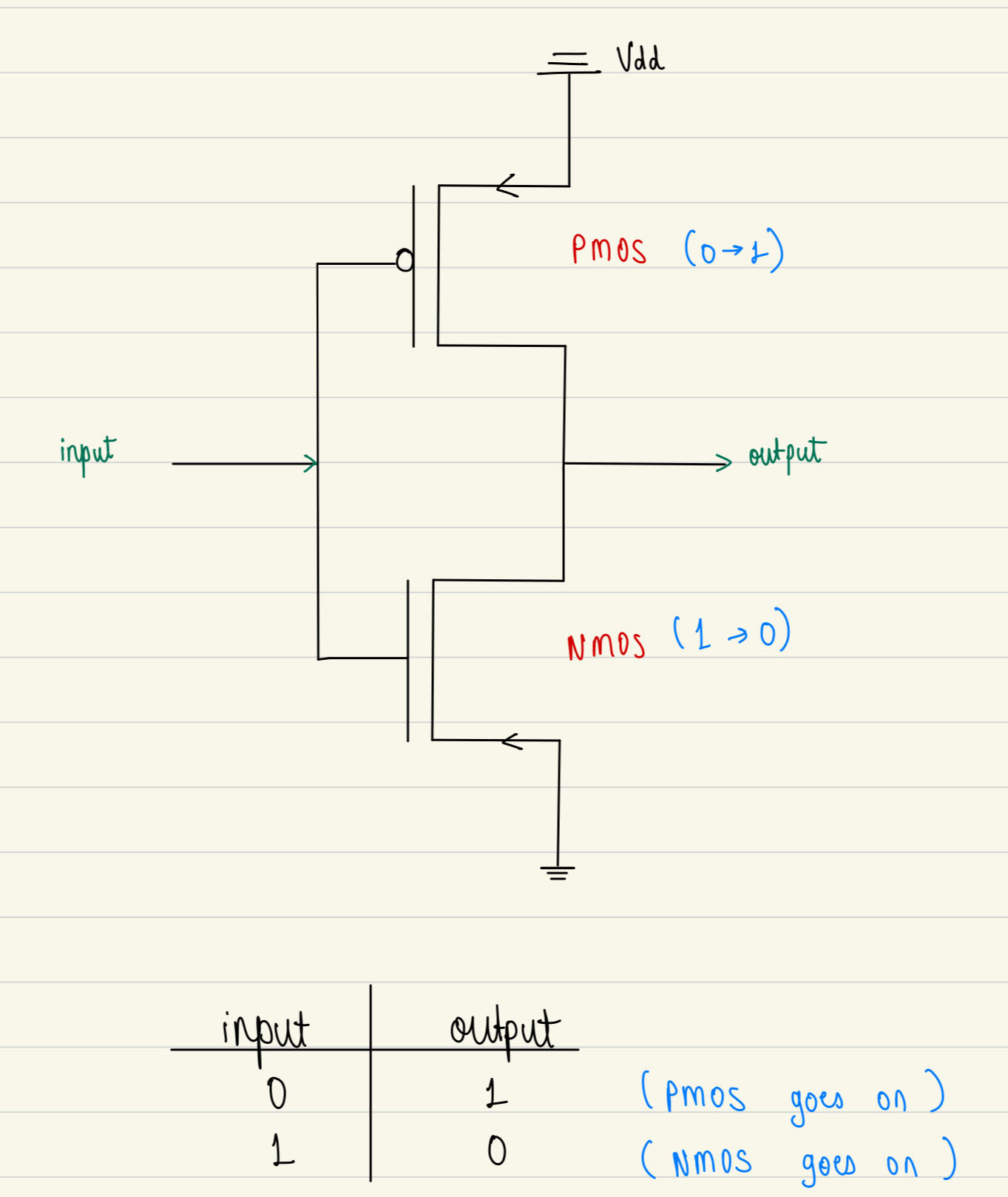

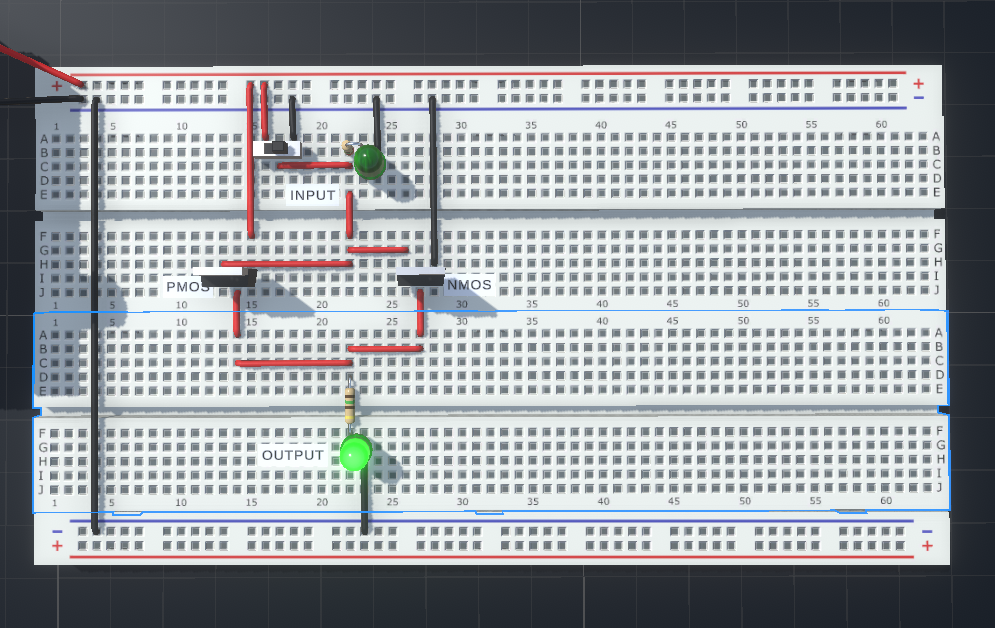

Inverter (NOT GATE)
Inverter uses a combination of PMOS and NMOS
This curcuit is called Complementary-MOS (CMOS) as PMOS & NMOS do opposite things
PMOS - pulls up
NMOS - pulls down
when input is 0 current flows from VDD -> PMOS -> OUTPUT
when input is 1 current flows from VDD -> outpu -> NMOS -> GND
| IN | OUT |
|---|---|
| 0 | 1 |
| 1 | 0 |
AND
| A | B | A AND B |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
OR
| A | B | A OR B |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
NAND
| A | B | A NAND B |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
NOR
| A | B | A NOR B |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 0 |
XOR
| A | B | A XOR B |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
